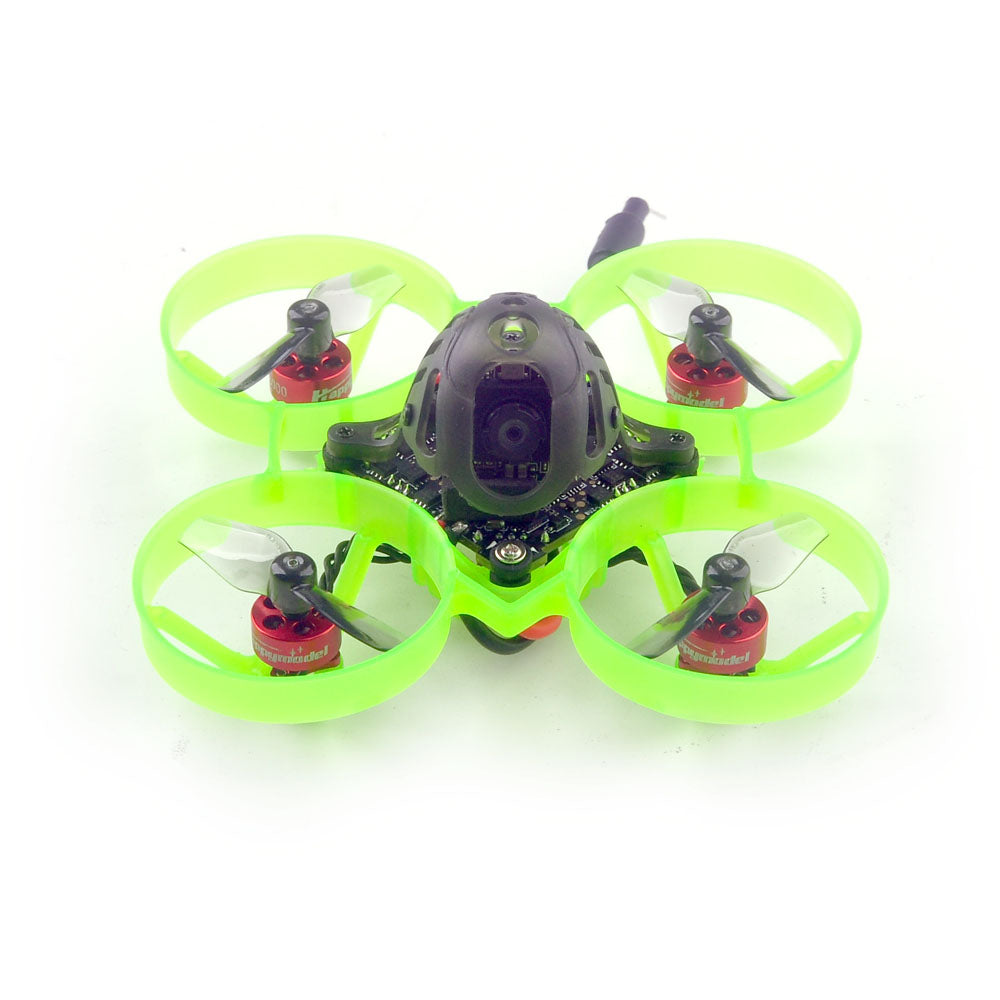

Introducing Mobula6 ELRS: The Ultimate Tiny Whoop Drone
Meet the Mobula6 ELRS 1S 65mm Brushless Whoop Drone, the perfect solution for all your Tiny Whoop flying needs. With its cutting-edge ELRS RC link system, ultra-light brushless motors, and high-quality components, this incredibly lightweight drone offers unparalleled performance and reliability. Get ready to experience smooth, powerful flights packed with excitement and fun!
Key Features:
- All-in-one flight controller with ELRS receiver and 5.8G VTX
- Super lightweight 1S 65mm Brushless Whoop at only 18.7 grams
- Equipped with the world's lightest brushless motors - SE0702 at just 1.46 grams each
- Features Runcam Nano3, the lightest 1/3 CMOS 800TVL Camera
- Smooth and powerful performance with 1S Lipo/LIHV compatibility
Specifications:
Brand: Happymodel
Item Name: Mobula6 ELRS 1S 65mm Brushless Whoop Drone BNF Version
Wheelbase: 65mm
Size: 80mm x 80mm x 37mm

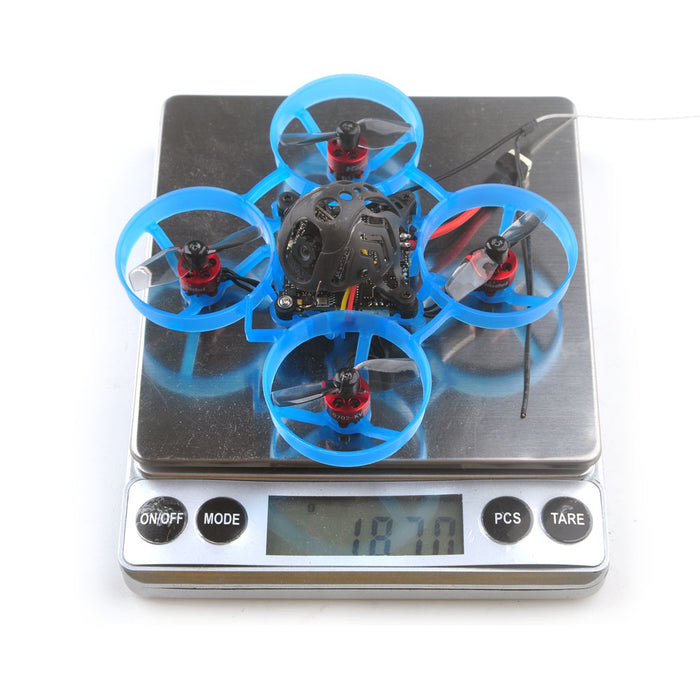

Weight: 18.7g
Voltage: 1S
| Version |
2.4GHz ELRS |
915MHz ELRS |
868MHz ELRS |
| Color |
Green |
Blue |
Blue |
| Flight controller |
ELRS F4 2G4 |
CrazyF4 ELRS |
CrazyF4 ELRS |
| Firmware target |
CRAZYBEEF4SX1280 |
CRAZYBEEF4DX |
CRAZYBEEF4DX |
Additional details for specific components can be found in the original product text above.
Package Contents:
- 1x Mobula6 1S 65mm Whoop Drone Frame
- 4x SE0702 KV26000 Brushless Motors
- 1x Set of HQPROP 31mm Bi-blade Propellers (4cw+4ccw)
- 1x Runcam Nano3 1/3 CMOS 800TVL Camera
- 1x Onboard 5.8G 25mw-200mw VTX
- 4x 1S 300mah 30C LiHV Battery
- 1x 1S Lipo/LIHV USB Charger
- 1x Propeller Disassemble Tool
- 1x ELRS F4 2G4 Flight Controller Built-in Receiver (Optional)
Invest in the Mobula6 ELRS drone and experience unrivaled performance in a lightweight package - perfect for your next Tiny Whoop adventure.
Product Specifications
| Version |
2.4GHz ELRS
|
915MHz ELRS
|
868MHz ELRS
|
Color
|
Green
|
Blue
|
Blue
|
| Flight controller |
ELRS F4 2G4 |
CrazyF4 ELRS |
CrazyF4 ELRS |
| Firmware target |
CRAZYBEEF4SX1280 |
CRAZYBEEF4DX |
CRAZYBEEF4DX |
| Built-in ExpressLRS receiver |
SPI 2.4GHz |
Serial-base 915MHz |
Serial-base 868MHz |
| Built-in Dshot ESC |
5A |
5A |
5A |
| Receiver antenna plug |
SMD ceramic antenna |
IPEX MHF3 |
IPEX MHF3 |
| Onboard VTX power |
25mw~200mw |
25mw~200mw |
25mw~200mw |
| Brushless Motor |
0702 KV26000 |
0702 KV26000 |
0702 KV26000 |
| Propeller |
HQPROP 31mm Bi-blade |
HQPROP 31mm Bi-blade |
HQPROP 31mm Bi-blade |
| Battery |
1s 300mah Lipo battery |
1s 300mah Lipo battery |
1s 300mah Lipo battery |
| Motor |
Mode: SE0702 KV26000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
Weight(g):1.46g
No.of Cells(Lipo):1S only |
| Propellers |
HQprop31mmx2
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Weight:0.2g |
| Flight controller |
ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver
CrazyF4 ELRS flight controller built-in 915MHz expresslrs receiver
CrazyF4 ELRS flight controller built-in 868MHz expresslrs receiver
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270.(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in ExpressLRS 2.4G/915MHz/868MHz receiver
Built-in 5V 1A BEC
Built-in voltage detection
|
| Onboard 4in1 ESC |
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600 |
| Onboard SPI ExpressLRS 2.4GHz Receiver (Optional) |
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHzAntenna : SMD antenna
Telemetry output Power: <12dBmReceiver protocol: SPI ExpressLRS
Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible |
| Onboard Serial-based ELRS Receiver ( Optional) |
Operation current: ~100Ma
Rx To FC protocol: CSRF
RF Frequency optional: 915mhz or 868mhz(EU)
Antenna connector: IPEX4
Telemetry output Power: <17dBmFirmware target: Happymodel_RX_ES915RXReceiver protocol: CRSF
Could bind with Happymodel ES915TX , Frsky R9M and DIY ELRS TX module(need to flash the same version ELRS firmware)
Firmware flash via Betaflight pass-through |
| Onboard 5.8g VTX |
Output power: 25mw~200mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race bandSmartaudio ready |
| Runcam Nano3 |
Model: RunCam Nano 3
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm |
| Lipo Battery |
Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8gConnector: PH2.0 |
